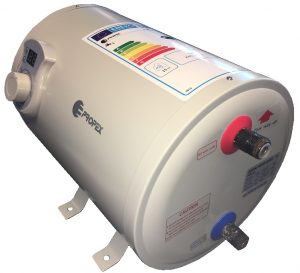

Electric hot water heater for caravans

Propex Heating and Leisure are pleased to present a mains powered hot water heater designed especially for the Caravan and Motorhome market and fully complying with new ErP legislation

The increase in quality and availability of site ‘hooks ups’ means the need to have multi fuelled water heaters is no longer a necessity for a lot of campers. So pull up, hook up and switch on to ensure lashings of hot water will always be available with this mains powered water storage heater.

Features and Benefits

  • The inner tank is made of stainless steel plate – very tough, very strong, resistant to corrosion and water scale, giving a long life.
  • Ultra thick, Non-CFC Polyurethane Foam to prevent heat loss & reduce energy costs.
  • Clever design, novel and functional appearance makes it easy to mount in a bedbox, locker or under seat storage area.
  • Temperature meter and adjustment knob.
  • Multiple protection devices against, over temperature, over pressure and electricity-leakage.
  • Choice of pipe connections and comes fitted with 3 pin plug for fast and easy installation.

Technical

Technical Specifications

Rated Voltage: 220V
Rated Power: 800 W
Rated Frequency: 50HZ/ 60HZ
Rated Current: 4.1A
Rated Pressure: 0.8MPa (116psi)
Min Start-up Pressure: 0.05MPa (7psi)
Rated Water Temperature: 75°C
Fitted Socket: 250V, 16A
Heating Efficiency: >90%

Model No:                  Rated Volume:              Product Size (mm):                               NW (KG):             GW (KG):

A1-6LH 6Litre 400x270x260mm 4.8 6.5
A1-10LH 10Litre 600x270x260mm 4.8 6.5

Mounting feet enable easy installation . Supplied water hose connector’s gives options of 12mm push fit female fitting or adapter to 12mm barbed hose connector.
